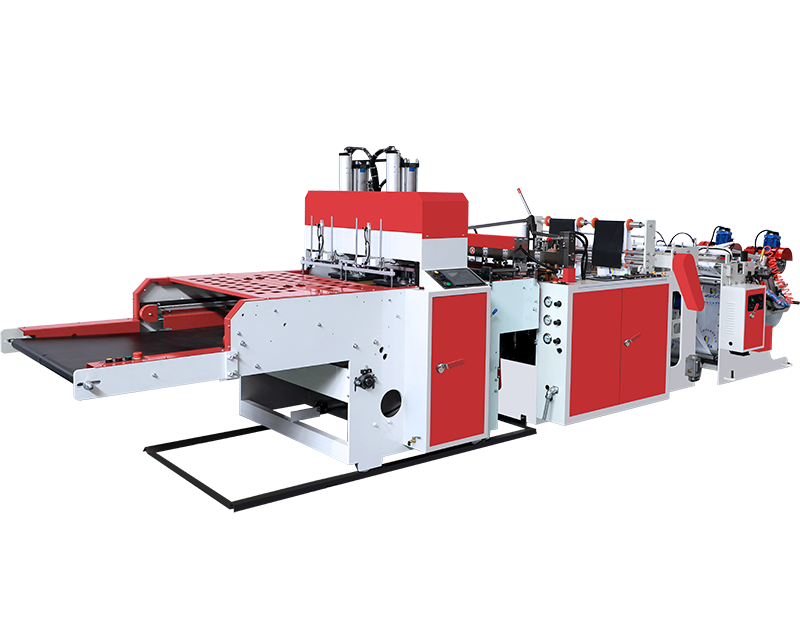

HSCG-450X2

Automatic High Speed Two Lines T-shirt Bag Making Machine

Production Line: 2 Lines

Bag Width (Max.): 400 mm

Max. Speed: 300 pcs/min*2

Fetures:

1.Independent unwind unit, motor feeding and reducer

2.Vest/T-shirt bags, grocery bags, super market shopping bags

3.Driven by 4.4 kw servo motor , high speed, stable operation

4.Heat sealing and heat cutting design

5.Suit for HDPE, LDPE, RECYCLE

Send Inquiry

Sample

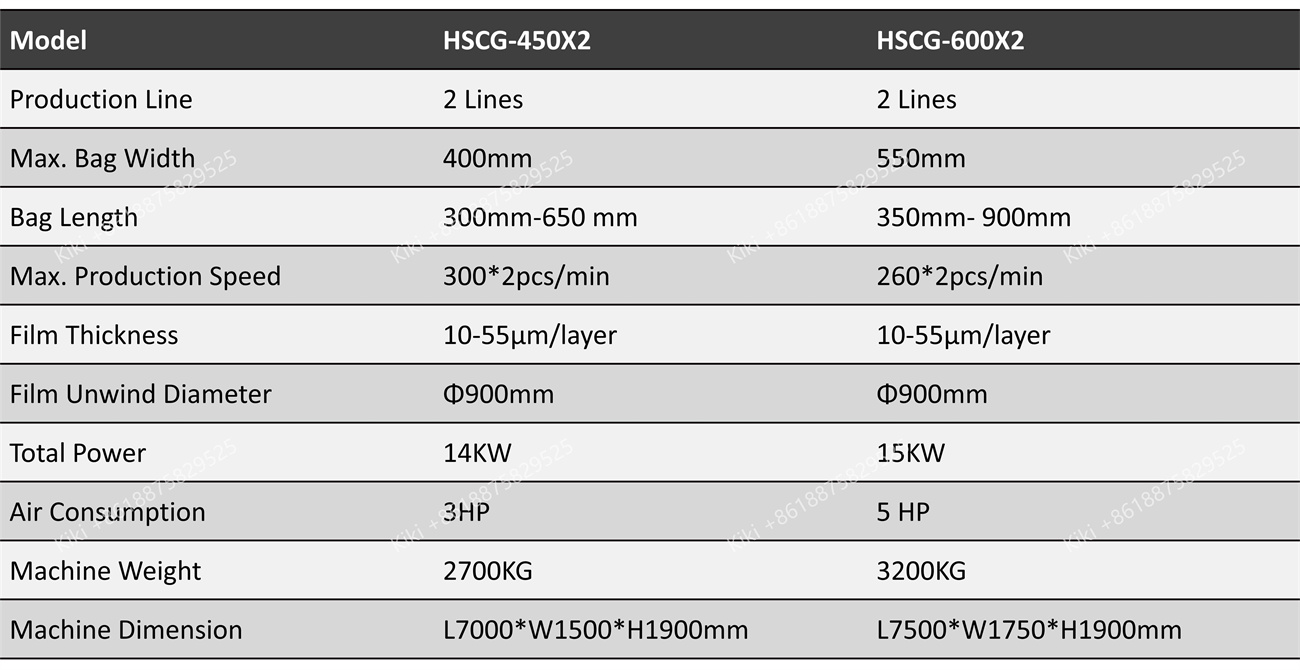

Technical Parameter5 WorkshopsPacking and Loading Downloads Send Inquiry

This machine is heat sealing and heat cutting design, which are suit for printed bag and non-printed bag production. The material of bag which machine can make is HDPE, LDPE and recycle materials and films with filers.

HSCG-450X2 is specially design for 2 lines high speed T-shirt bag production . Two independent computers control design and driven by double servo motor , high efficiency, easy and stable operation, low noise, non-stop working. Machine is suitable for producing plastic T-shirt bags in high speed and stable operation for 24 hours.

Independent Unwinder

Air Fan Blowing & Bamboo Curtain

Heat Sealing & Heat Cutting

Mechanical Gripper

Nylon Punching Plate

Stacking & Conveyor

Workshop No.1

Workshop No.2

Workshop No.3

Workshop No.4

Sample Room

wooden pallet+plastic film

Wooden Case(need extra charge)

wooden pallet+plastic film
