HSVZ-1200C

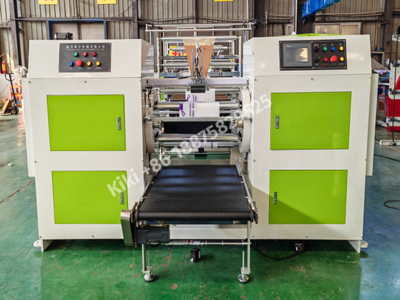

One Line Flat Bag-on-roll Making Machine Coreless With V-fold and C-fold

Production Line:1 Line

Film Width (Max.): 1100 mm

Bag Roll Width: 600 mm

Max. Speed : 150 pcs/min

Fetures:

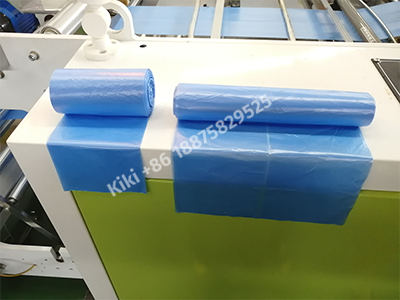

For star sealing garbage bag on roll coreless

And for table cover,Tablecloth, Surfra etc.

V-fold unit make film roll small, and star sealing

Sealing strong + Tear easily

Send Inquiry

Sample

Technical Parameter5 WorkshopsPacking and Loading Downloads Send Inquiry

This machine is heat sealing and perforation for bag rewinding, which are suit for printing and non-printing bag making. 2lines machine suit for HDPE materials rewind , 1 line machine suit for producing HDPE, LDPE, Biodegradable and recycle materials.

HSVZ-C machine is star sealing and bottom sealing multi-function bag on roll making machine.

1. When producing the star sealing garbage bags, don’t go through the C-folding working station. (Film Unwinding→V-folding → Star Sealing& Perforating→ Rewinding). When make 2 lines, should to change the V-folding device that is 2 lines

2. When producing the bottom sealing bags, don’t go through the V-folding working station. (Film Unwinding →Bottom Sealing& Perforating→C-folding→ Rewinding). When make 2 lines only need adjust the C-folding device position.

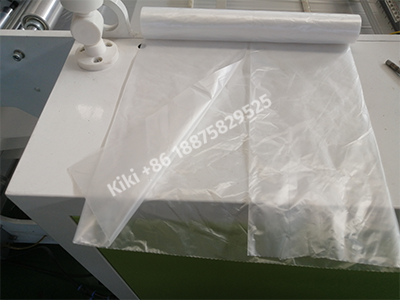

3. When producing the table cover, don’t go through V-fold and C-fold working station, and turn off the temperature controller. (Film Unwinding → Perforating→ Rewinding)

Unwind Feeding

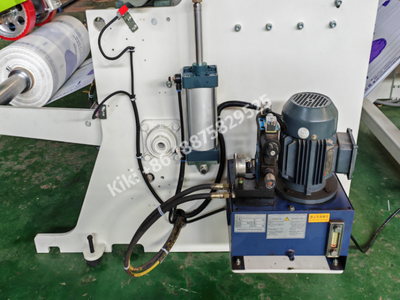

Hydraulic Lifting

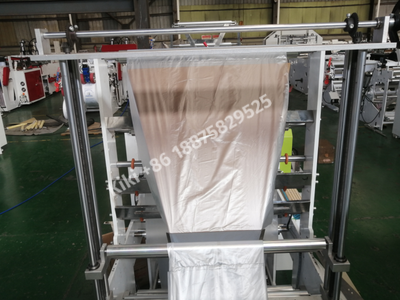

1 time V-fold Unit

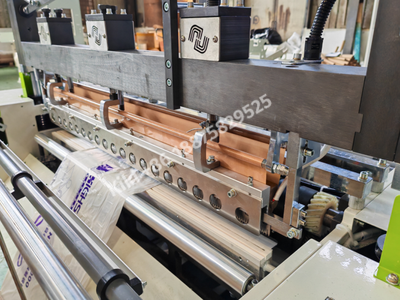

Sealing Knife& Serrated

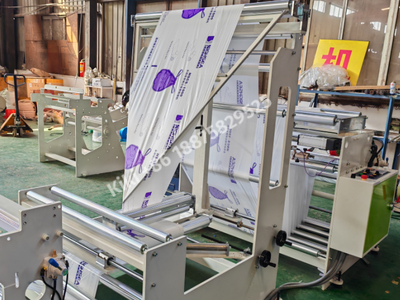

1 time C-fold Unit

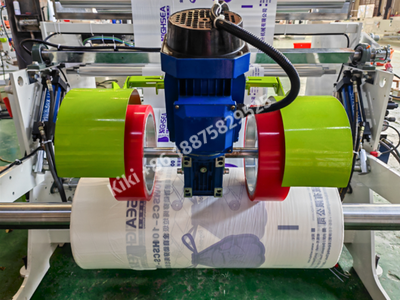

Rewinder (perforation)

Workshop No.1

Workshop No.2

Workshop No.3

Workshop No.4

Sample Room

wooden pallet+plastic film

Wooden Case(need extra charge)

wooden pallet+plastic film

If you have any enquiny about quotation or cooperation,please feel free to emal us at sale5@haisheng.cc or use the folowing enuiry form.
Our sales representative will contact you within 24 hours. Thank you for your interest in our products

* Title:

* Name:

* Email:

* Tel:

* Content:

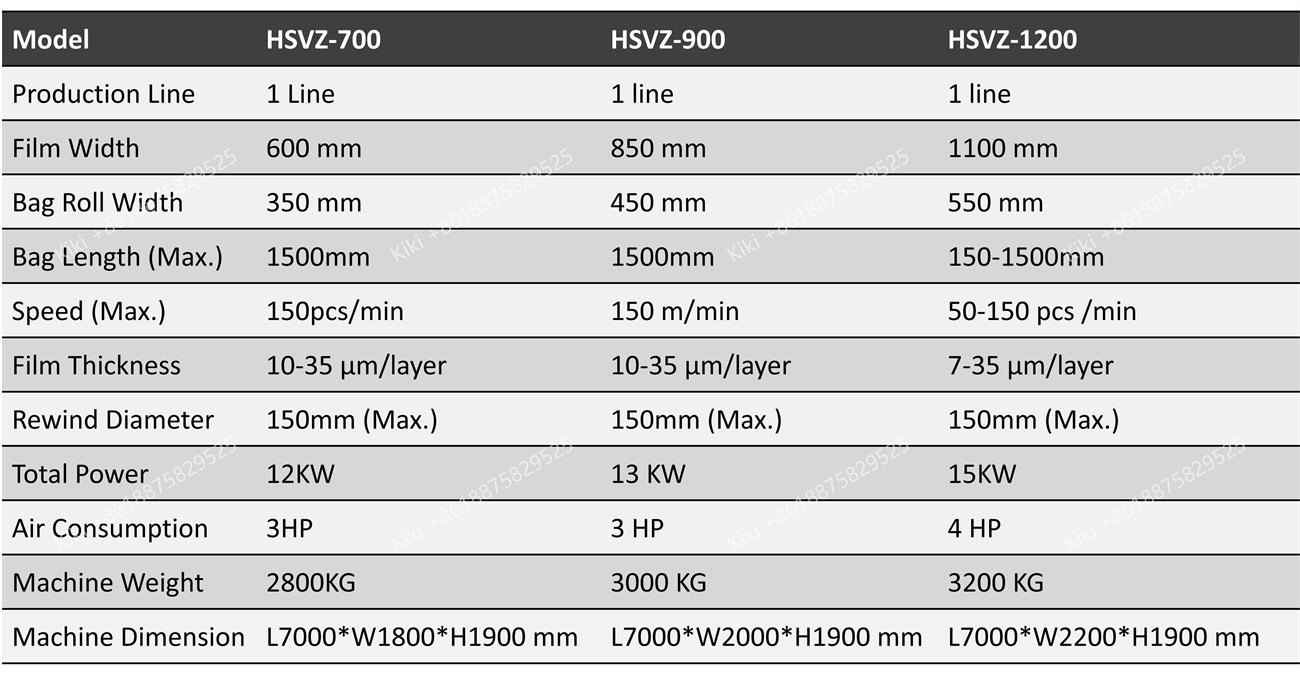

Technical Parameter
