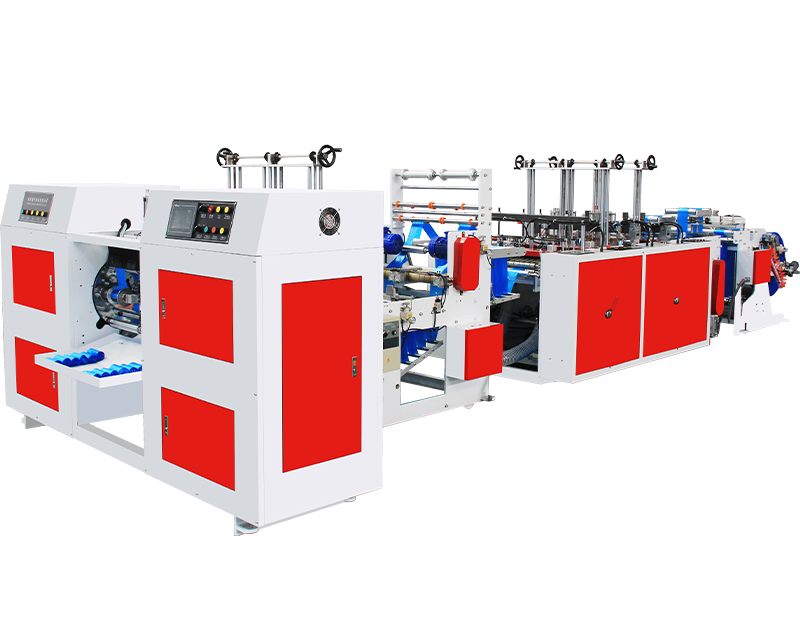

HSWT-300X2

Two Lines Fully Automatic T-shirt type/ S-type/ Flat-cut Bag-on-roll Garbage Bag Making Machine Coreless

Production Line:1 Line

Film Width(Max.): 1100 mm

Bag on roll Width (Max.): 600 mm

Max. Speed: 120 pcs/min

Fetures:

For star sealing garbage bag on roll coreless

3 functions: T-shirt garbage bags/S-cut garbage bags/Flat garbage bags

Suit for producing: HDPE,LDPE, recycle materials

Automatic rewind and change roll

Sealing strong + Tear easily

Send Inquiry

Sample

Technical Parameter5 WorkshopsPacking and Loading Downloads Send Inquiry

This machine is heat sealing and perforation for bag rewinding, which are suit for printing and non-printing bag making. The material of bag is HDPE , LDPE and recycle materials.

HSWT series can make garbage bags in efficient production by automatically changing plastic rolls. Machine equip two sets of high voltage crevice sensor devices which can detective the right position to break the film and make the rolls in extract number.

T-shirt trash bag : Unwind →handle seal and bottom seal →perforate the bottom →C-punch to make bag handle →rewind and change film roll

S-type trash bag : unwind →bottom seal and perforate →S-type mode punch →rewind and change film roll

Flat bag : unwind →bottom seal and perforate →rewind and change film roll

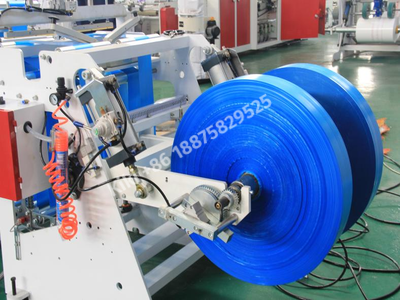

Unwind Feeding

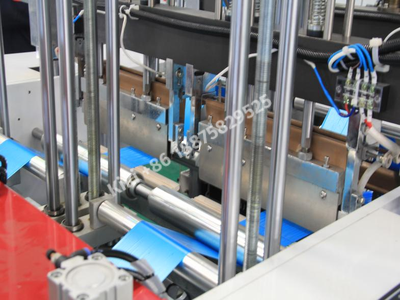

Sealing Knife& Serrated Knife

S-type Punch T-shirt type Punch

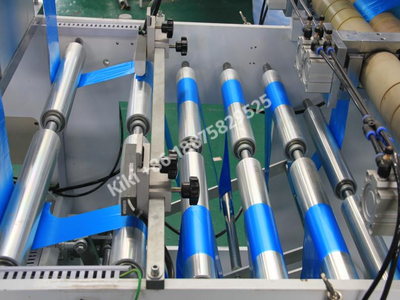

Dancing Roller

EPC Devices

Rewinder

Workshop No.1

Workshop No.2

Workshop No.3

Workshop No.4

Sample Room

wooden pallet+plastic film

Wooden Case(need extra charge)

wooden pallet+plastic film
