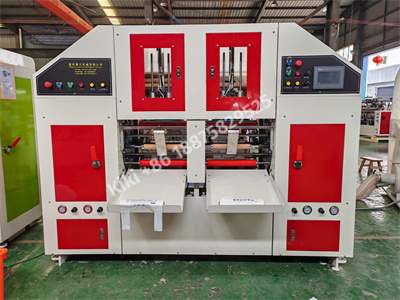

HSLB-450X2CB

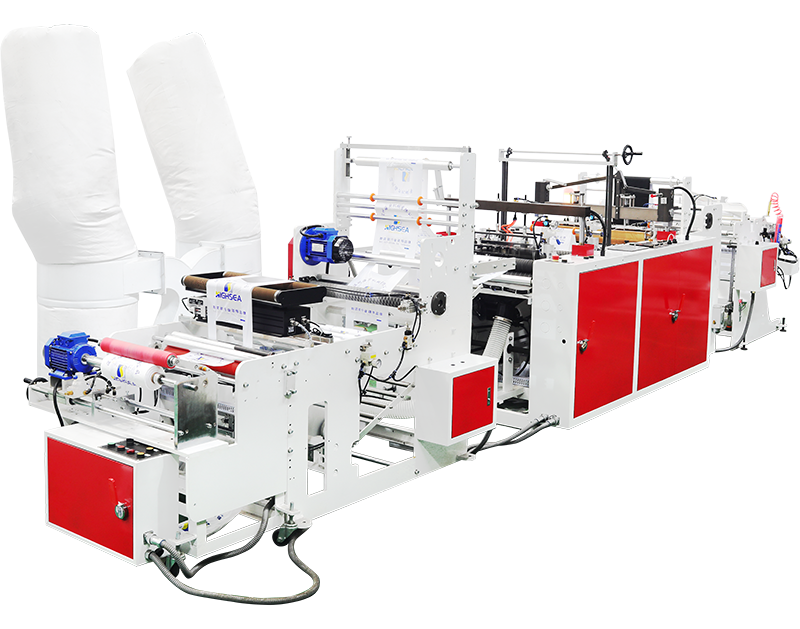

Two Lines Automatic T-shirt Bag on Roll With Core Making Machine with Gusset

Production Line: 2 Lines

Bag on roll Width (Max.): 350 mm

Production Speed Max. : 180 pcs/min

Fetures:

Rotary hob design

Slitting and side gusset device

T-shirt bag or flat bag 2 choices

Automatic film-break and core-change

9 sets servo motors control

Send Inquiry

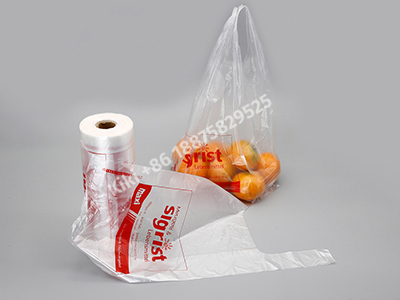

Sample

Technical Parameter5 WorkshopsPacking and Loading Downloads Send Inquiry

This machine is heat sealing and perforation for bag rewinding, which are suit for printing and non-printing bag making. The material of bag is HDPE and recycle materials.

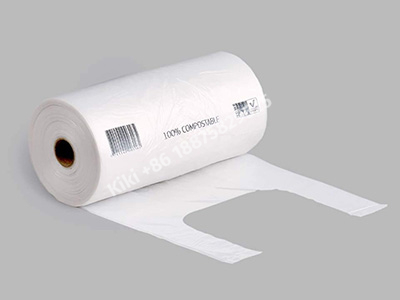

HSLB-450X2CB is special design for slitting and sealing 1 pcs jumbo roll into 2 small rolls of T-shirt bag-on-roll bags with paper or PVC core production.

The D-punch plate can be removed to make bottom sealing bag-on-roll bags. One machine two options. Servo motors control makes film feeding more stable . It’s automatic film-break and core-change functions help bag suppliers to improve bag making capacity at the most extent. Two photocells make printed bags tracking more precise.

Unwinder Feeding

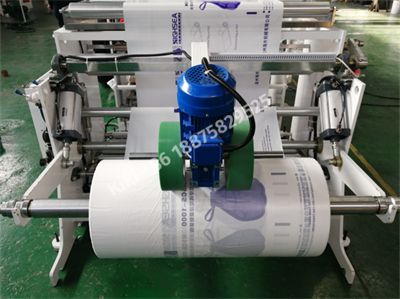

Slitter

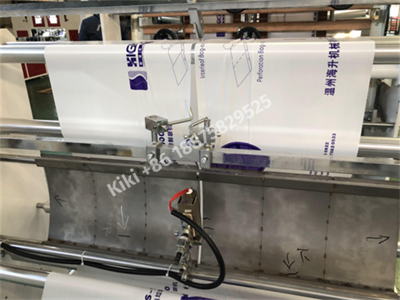

Gusset Device

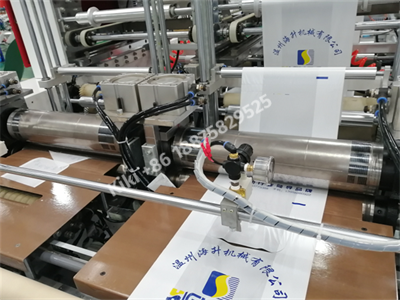

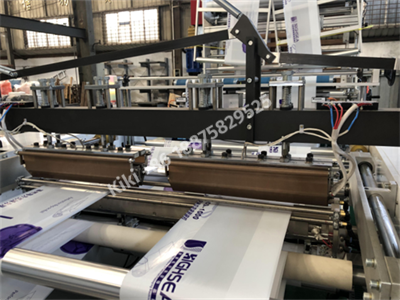

Heat Sealing Sway System

Magnetic Iron Blade (Handle Shape Cut)

Automatic rewinder with Core

Workshop No.1

Workshop No.2

Workshop No.3

Workshop No.4

Sample Room

wooden pallet+plastic film

Wooden Case(need extra charge)

wooden pallet+plastic film

If you have any enquiny about quotation or cooperation,please feel free to emal us at sale5@haisheng.cc or use the folowing enuiry form.
Our sales representative will contact you within 24 hours. Thank you for your interest in our products

* Title:

* Name:

* Email:

* Tel:

* Content:

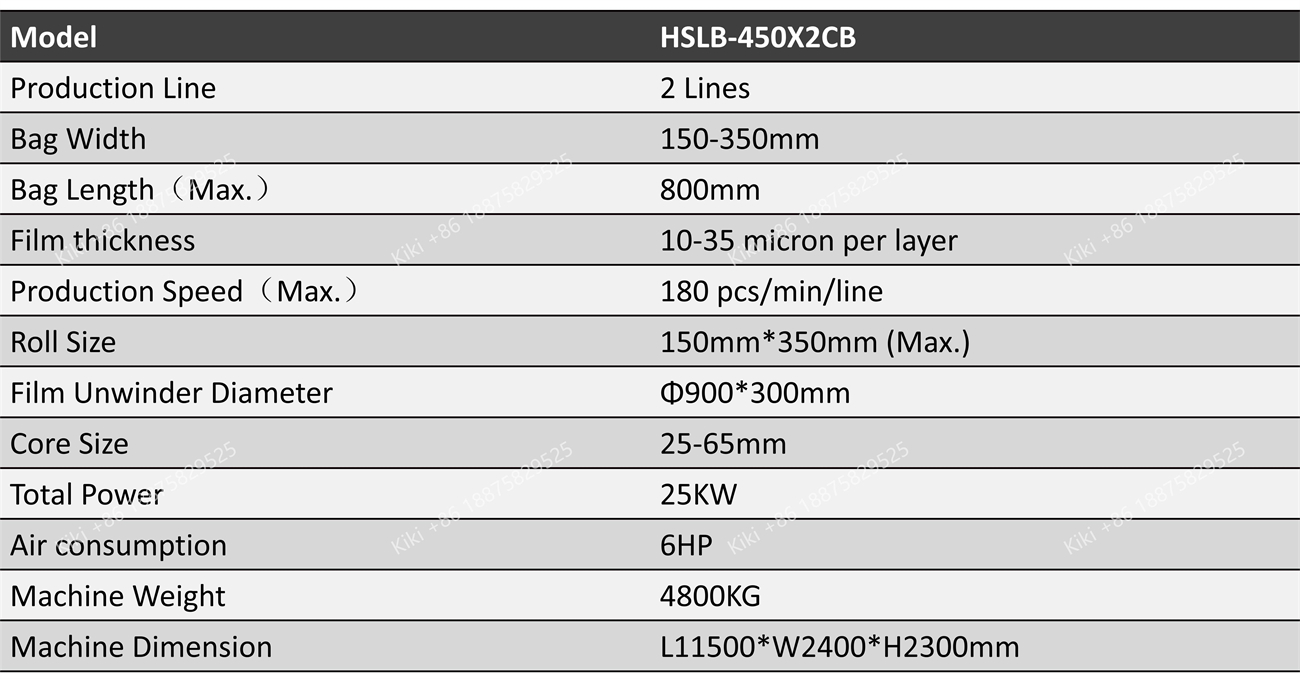

Technical Parameter
