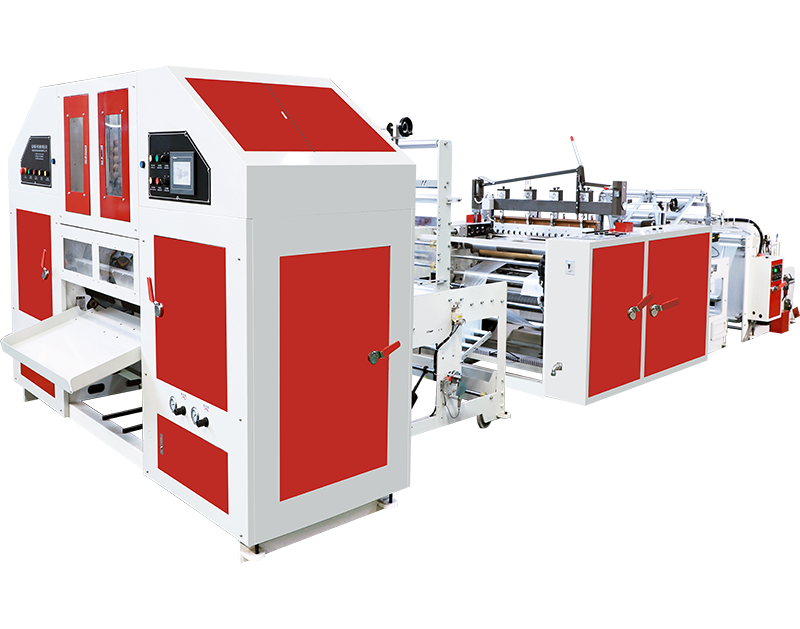

HSYW-1000SD

Automatic One Line /Two Lines Flat Bag On Roll Making Machine With Core And Coreless

Production Line: 1 or 2 Lines

Film Width (1 line): 800 mm

Film Width (2 lines): 350 mm

Max. Speed : 200 pcs/min

Fetures:

1.One machine 4 options:One line + Core/One line + Coreless/Two lines + Core/Two lines+ Coreless

2.Produce with one line or two lines:

3.One line is suitable for producing big size bag-on-roll.

4.Two lines is suitable for producing small size bag-on-roll.

5.Also can produce plastic table cover on roll with core or coreless

Send Inquiry

Sample

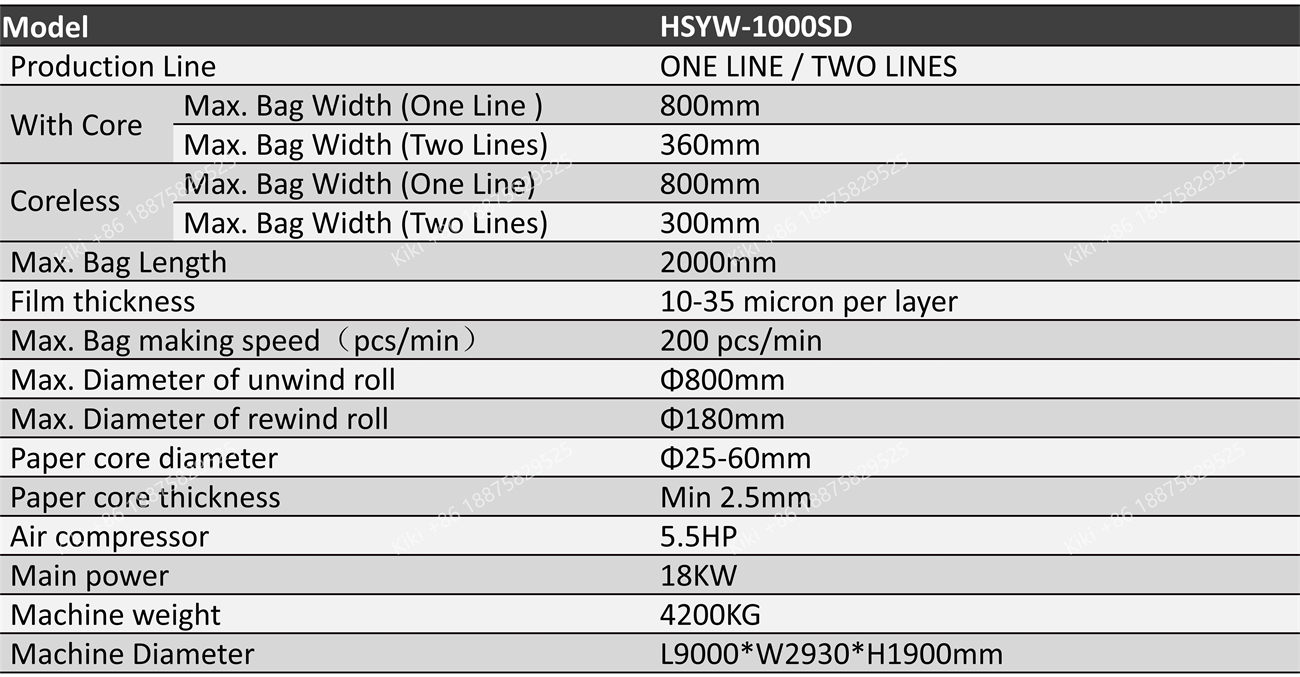

Technical Parameter5 WorkshopsPacking and Loading Downloads Send Inquiry

This machine is heat sealing and perforation and bag rewinding, which are suit for printing and non-printing bag making. When produced bag on roll with core or one line and big roll without core, it suit for LDPE, HDPE and recycle materials. When produced 2 lines bag on roll without core, it only suit for HDPE materials.

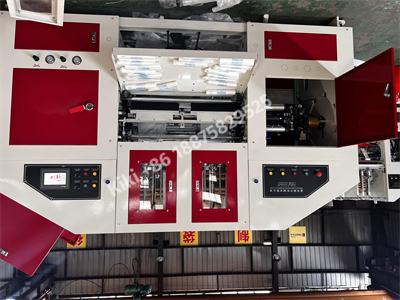

HSYW-1000SD is designed for 1 line /2 lines flat bag on roll with core or coreless production. Such as freezer bag /vegetable bag on roll with core, garbage bag on roll coreless, table cloth on roll with core or coreless.

It’s automatic film-break and core-change functions help bag suppliers to improve bag making capacity and to reduce energy and man power at the most extent. Its double servo motors control system makes producing more stable.

One/Two Lines produce procedures：

Film roll unwinding → Triangle V-folding (optional )→ Heat sealing and perforating → C-folding (optional) → bag rewinding

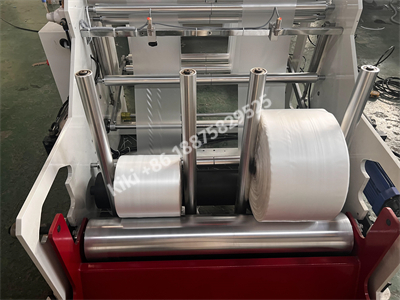

Unwind Feeding

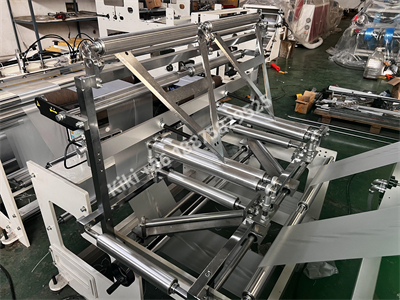

V-folding Device

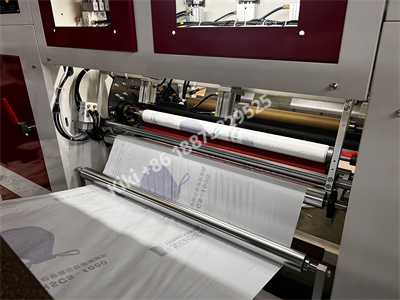

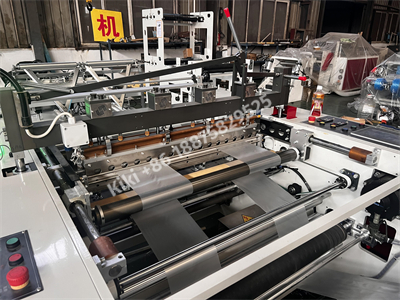

Sealing and Perforation Rocking system

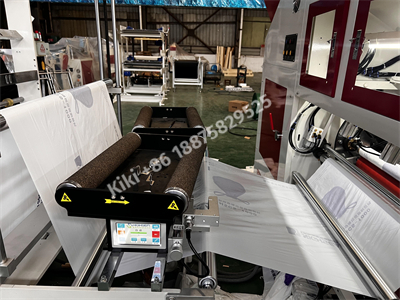

EPC Device

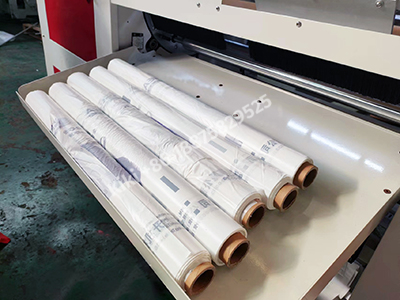

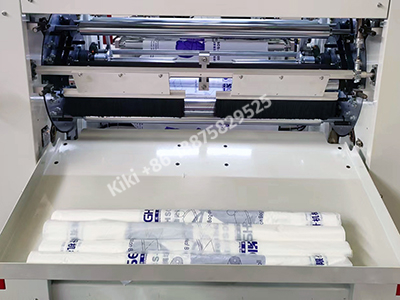

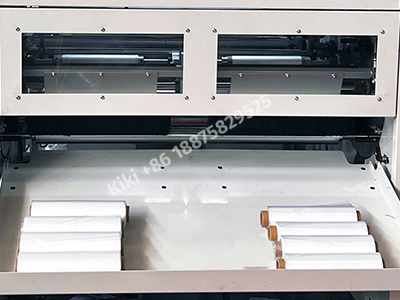

Rewinding part

Paper Core storage

Workshop No.1

Workshop No.2

Workshop No.3

Workshop No.4

Sample Room

wooden pallet+plastic film

Wooden Case(need extra charge)

wooden pallet+plastic film
