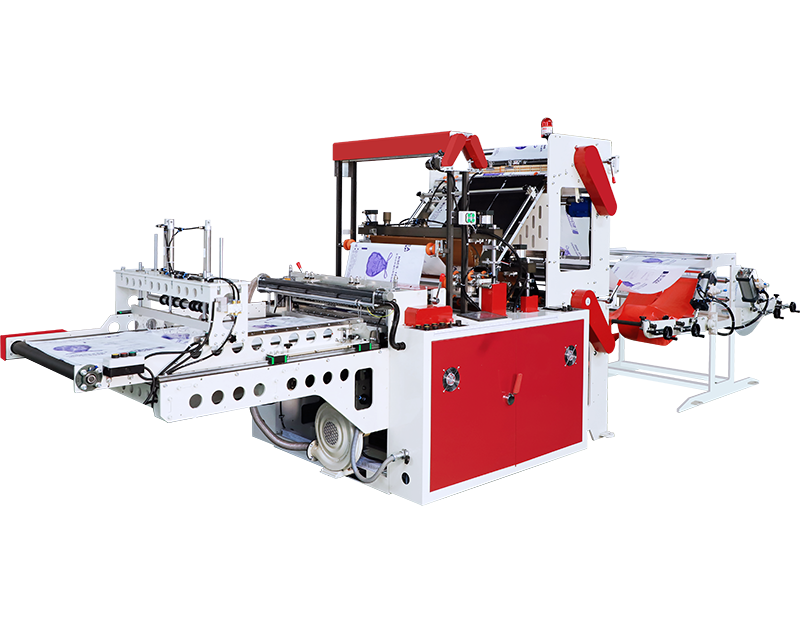

HSDF-850C

Four Lines Bottom Sealing Flat Bag Making Machine With Conveyor

Production line: 4/2/1 lines

Max. Width: 800 mm

Max. Length: 1000 mm

Speed: 150 pcs/min

Fetures:

Suit for producing flat bottom sealing Bags

Heat sealing + Cold Cutting design

Four lines, two lines or one line production

One photocell to making printing bags

Send Inquiry

Sample

Technical Parameter5 WorkshopsPacking and Loading Downloads Send Inquiry

HSDF-850C is designed for producing big flat bottom sealing bags

This machine is heat sealing and cold cutting design, which are suit for printed bag and non-printed bag production. The material of bag which machine can make is HDPE, LDPE and recycle materials.

Four Lines Unwind Feeding

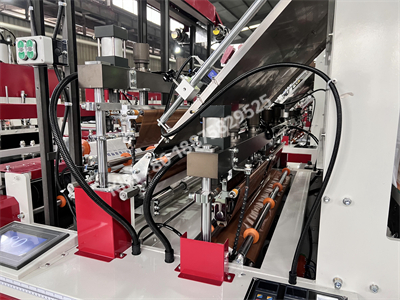

Heat Sealing (Up+Down)

Automatic Adjusting Bracket

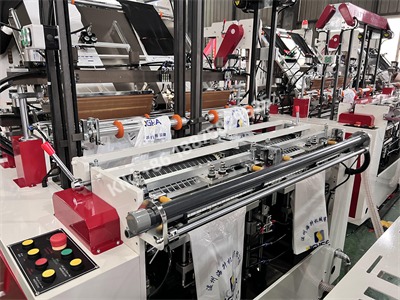

Cold Cutting (Two Lines)

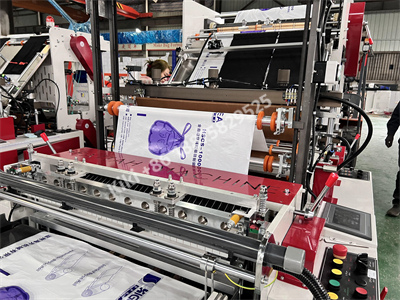

Cold Cutting (One line)

Conveyor

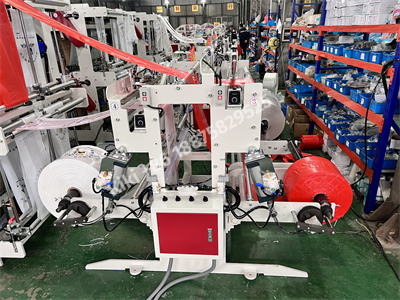

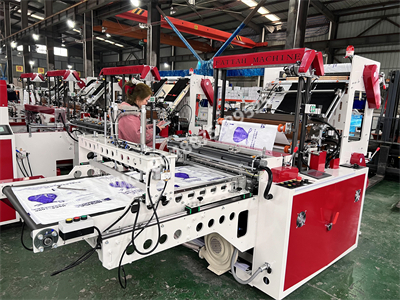

Workshop No.1

Workshop No.2

Workshop No.3

Workshop No.4

Sample Room

wooden pallet+plastic film

Wooden Case(need extra charge)

wooden pallet+plastic film

If you have any enquiny about quotation or cooperation,please feel free to emal us at sale5@haisheng.cc or use the folowing enuiry form.
Our sales representative will contact you within 24 hours. Thank you for your interest in our products

* Title:

* Name:

* Email:

* Tel:

* Content:

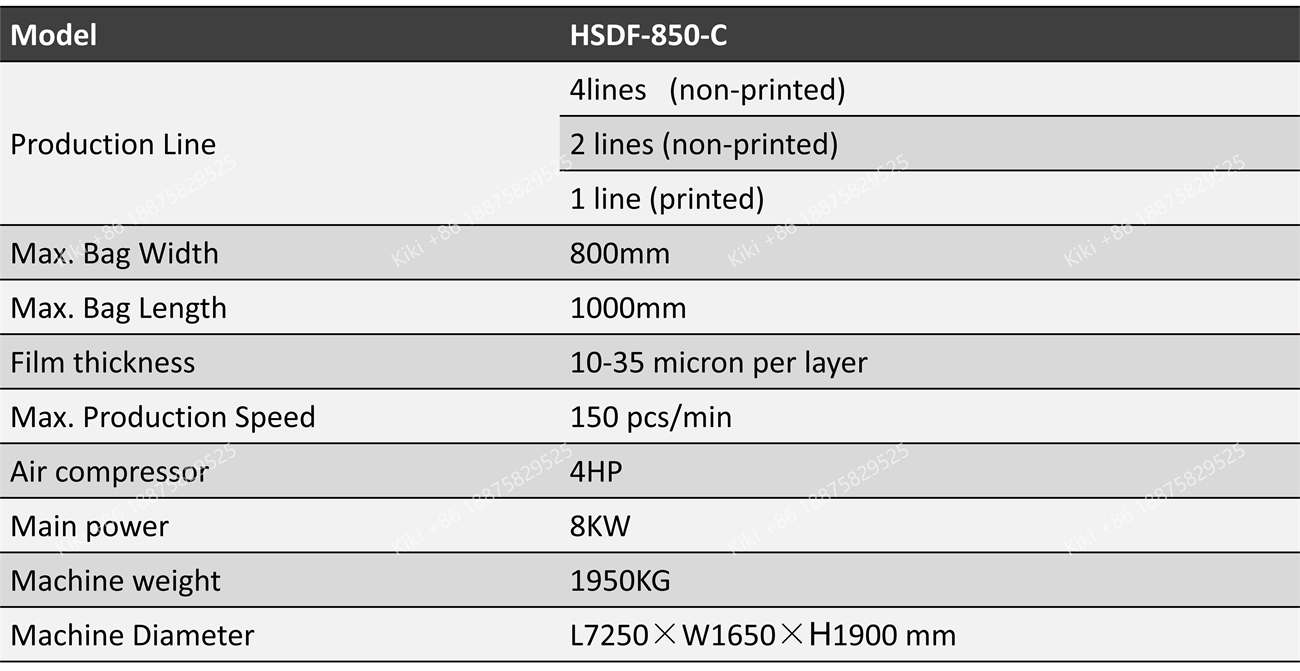

Technical Parameter

HSDF-850C is designed for producing big flat bottom sealing bags

This machine is heat sealing and cold cutting design, which are suit for printed bag and non-printed bag production. The material of bag which machine can make is HDPE, LDPE and recycle materials.
