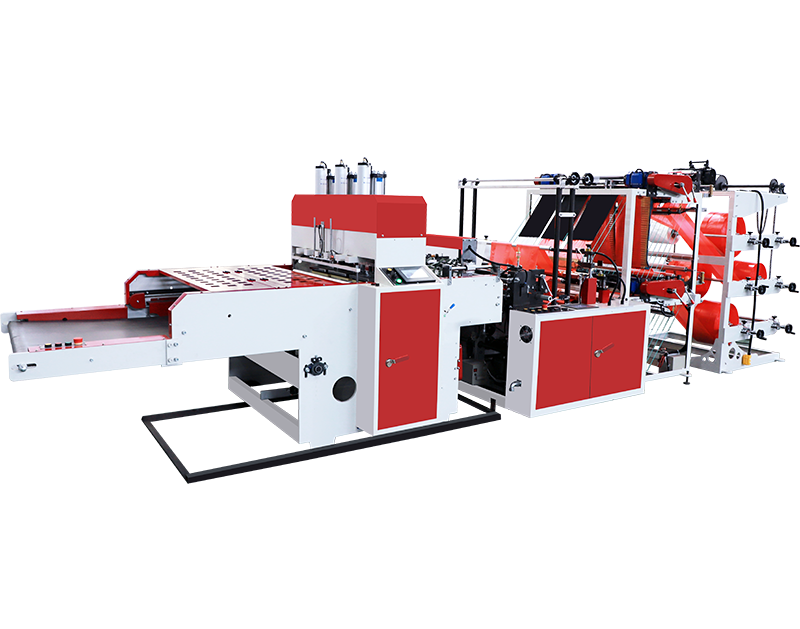

HSDF-1000P

Six Lines Bottom Sealing T-Shirt Bag Making Machine With Punch

Production line: 6/4/2 lines

T-shirt bags Max. Width (6lines): 280mm

Flat bag Max. Width (4 lines): 380mm

Flat bag Max. Width (2 lines): 900mm

Max. Speed: 140 pcs/min/line

Fetures:

Heat sealing + cold cutting design

Sealing knife can be turned over to make flat bags

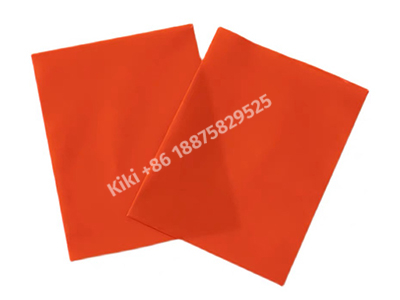

Four/ two lines flat bags without punching

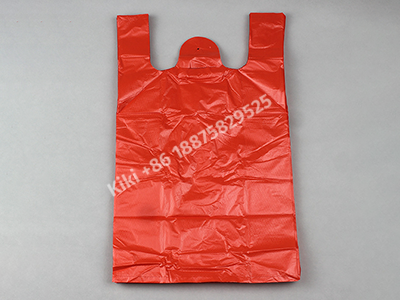

Six lines T-shirt bags with punching

Send Inquiry

Sample

Technical Parameter5 WorkshopsPacking and Loading Downloads Send Inquiry

HSDF-1000P is designed 6 lines for producing T-shirt bags and flat bags, 2 options. This machine is heat sealing and cold cutting design, which are suit for printed bag and non-printed bag production. The material of bag which machine can make is HDPE, LDPE and recycle materials.

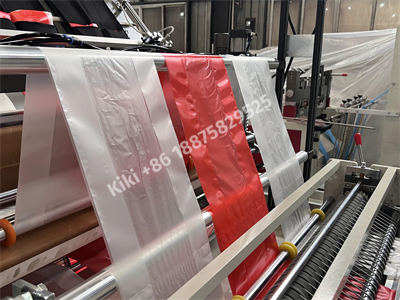

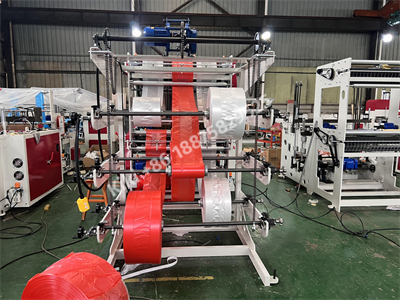

Unwinder Feeding(6 lines)

Air Bolwing System (2 layers)

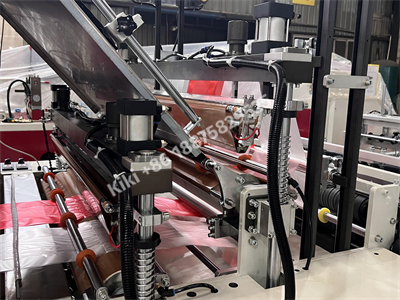

Heat Sealing (2 layers)

Adjusting Bracket

Automatic Punching

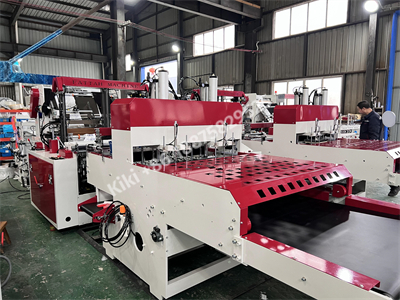

Workshop No.1

Workshop No.2

Workshop No.3

Workshop No.4

Sample Room

wooden pallet+plastic film

Wooden Case(need extra charge)

wooden pallet+plastic film

If you have any enquiny about quotation or cooperation,please feel free to emal us at sale5@haisheng.cc or use the folowing enuiry form.
Our sales representative will contact you within 24 hours. Thank you for your interest in our products

* Title:

* Name:

* Email:

* Tel:

* Content:

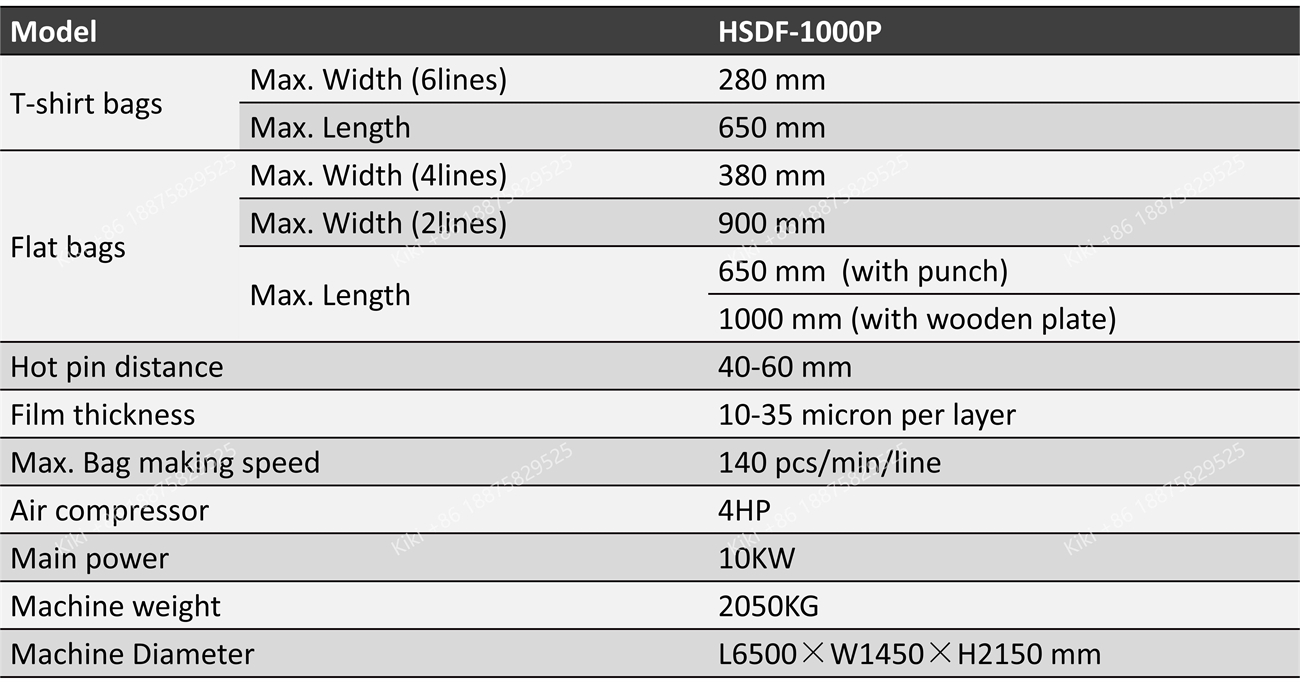

Technical Parameter
