HSCB-900

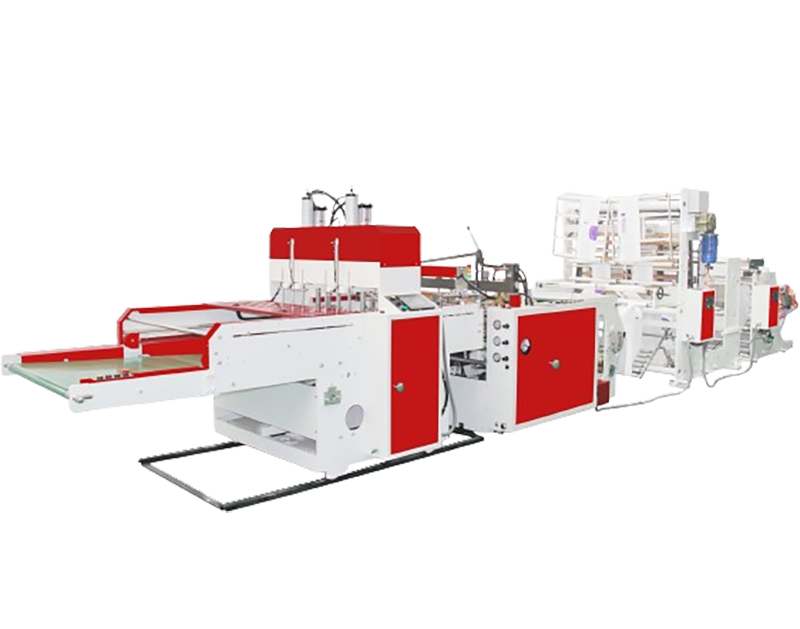

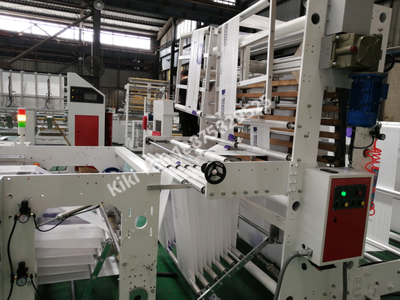

Two Lines Automatic T-shirt Bag Making Machine With Side Gusset

Production Line: 2 lines

Bag Width (Max.): 380 mm (2 lines)

Max. Speed: 180 pcs/line

Fetures:

1.With Side Gusset

2.Heat slitting and heat cutting 1 big jumbo roll into 2 separate rolls

3.Driven by 5.5KW servo motor

4.Heat sealing and heat cutting design 5.Suit for HDPE,LDPE Printing or non-printing T-shirt bag

Send Inquiry

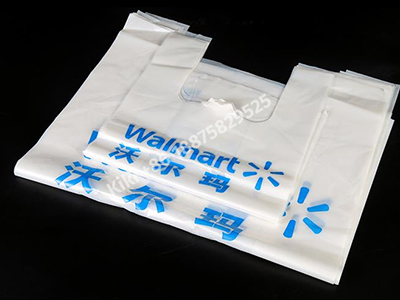

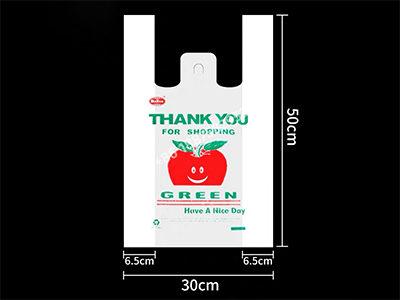

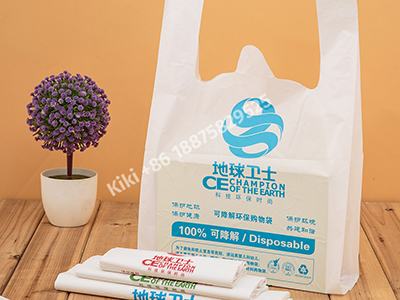

Sample

Technical Parameter5 WorkshopsPacking and Loading Downloads Send Inquiry

This machine is heat sealing and heat cutting design, which are suit for printed bag and non-printed bag production. The material of bag which machine can make is HDPE, LDPE and recycle materials and films with filers.

HSCB-900 is special design for slitting and seal 1 pcs jumbo roll into 2 small rolls in high speed production. 2 independent computers control design and driven by 5.5KW servo motor, high efficiency, easy and stable operation, low noise, non-stop working. This machine is also Suitable for producing disposable plastic T-shirt bags.

Independent Unwinder

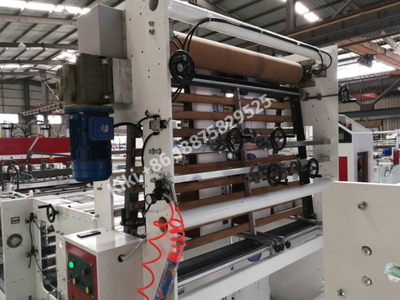

Aluminum Rollers & Dancing Rollers

Gusset Device

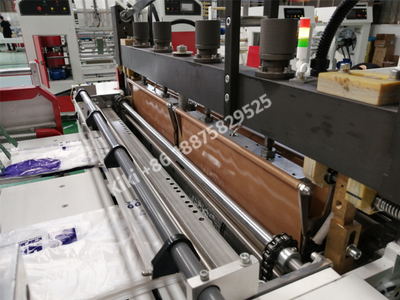

Heat Sealing & Heat Cutting

Mechanical Gripper

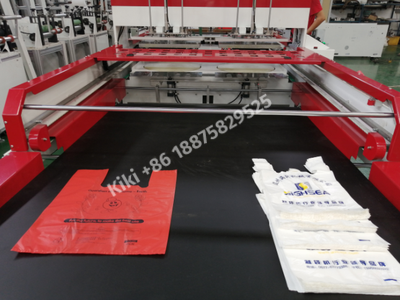

Stacking & Conveyor

Workshop No.1

Workshop No.2

Workshop No.3

Workshop No.4

Sample Room

wooden pallet+plastic film

Wooden Case(need extra charge)

wooden pallet+plastic film

If you have any enquiny about quotation or cooperation,please feel free to emal us at sale5@haisheng.cc or use the folowing enuiry form.
Our sales representative will contact you within 24 hours. Thank you for your interest in our products

* Title:

* Name:

* Email:

* Tel:

* Content:

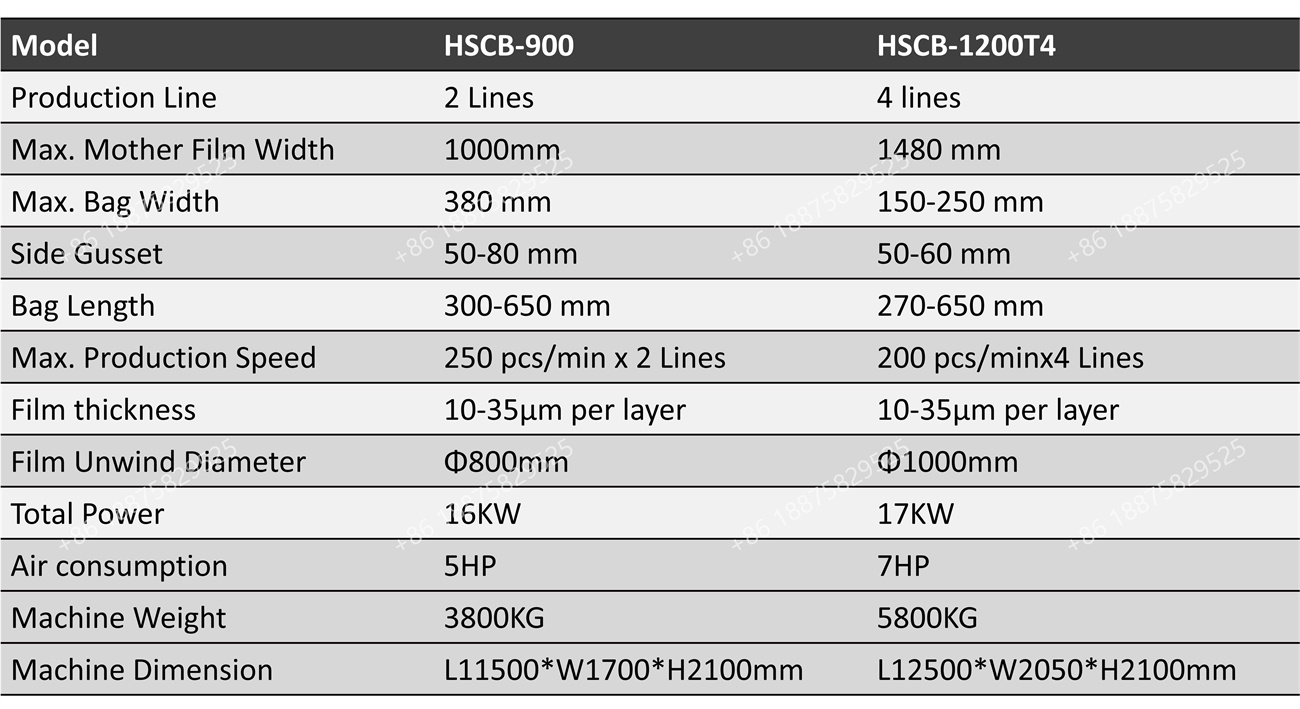

Technical Parameter
